YohoAI's flagship high-speed can & lid production system - 300 cans/min maximum throughput for beverage, aerosol, and export-grade packaging manufacturers.

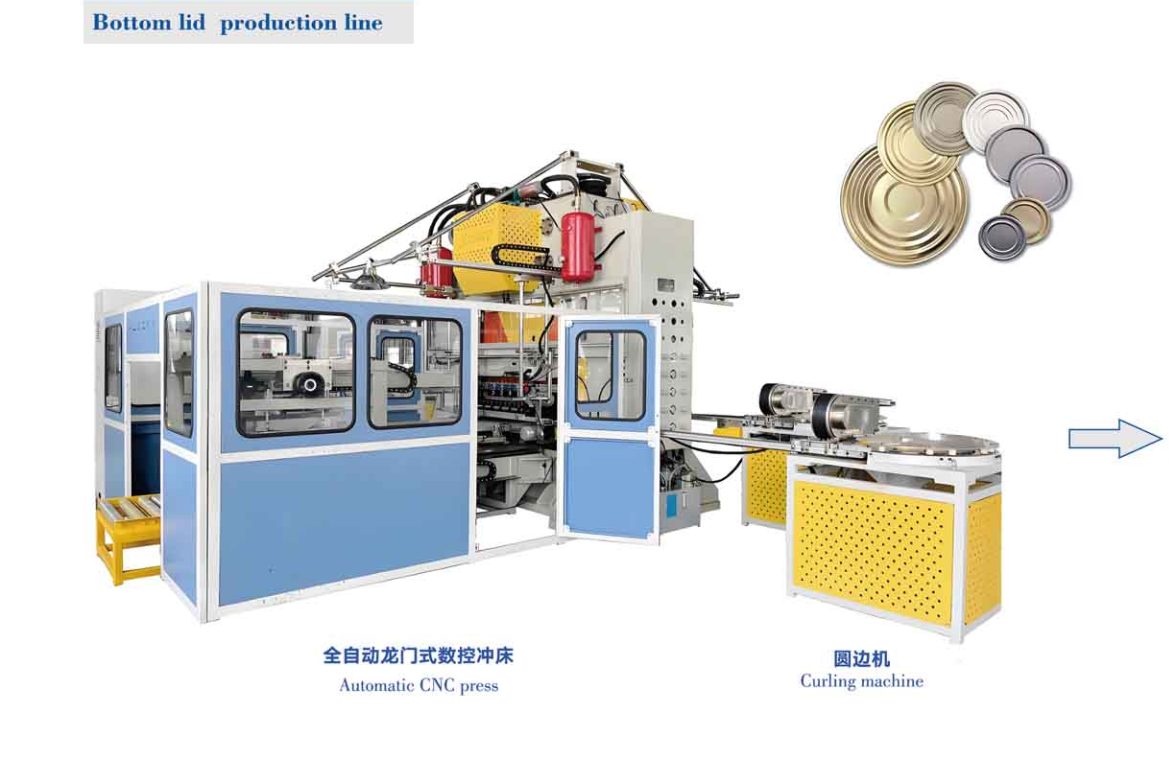

The YC-300 is YohoAI's premium full-automatic can and lid production system, delivering up to 300 cans per minute across the widest diameter range in the YC series (50-180 mm). Designed for high-volume beverage, aerosol, and export manufacturers, the YC-300 integrates every process stage - from tinplate decoiling through necking, seaming, coating, and automated leak testing - into a single, continuous production line with full SCADA-ready PLC+HMI control.
Verified factory data - not marketing estimates
High-speed servo-driven forming, necking, and double seaming stations deliver 300 cans/min for large-scale export and contract packaging operations. VFD control adjusts speed precisely without sacrificing seam quality.
The only YC model supporting 50-180 mm diameter - from slim beverage cans to large industrial and aerosol containers - on a single platform with minimal changeover parts.
Progressive necking followed by double seaming (two-operation hook + compression) produces hermetically sealed, leak-proof cans. Every can is pneumatically tested before packaging.
Internal FDA 21 CFR 175.300 and EU 10/2011 compliant coatings, BPA-NI options, and halal/kosher certifications cover every major export market requirement.
Siemens/Schneider PLC+HMI with optional SCADA integration enables real-time OEE tracking, production analytics, and remote diagnostics via VPN for predictive maintenance.
Regenerative braking on all servo motors and VFD variable-speed control reduce energy consumption by up to 25% versus conventional lines, lowering the cost per can at peak throughput.
Our team responds within 2 hours with CIF/CFR/FOB pricing and delivery timeline.
The YC-300 reaches up to 300 cans per minute at peak speed, making it the highest-throughput model in the YC series. It is designed for large-scale beverage, aerosol, and export packaging manufacturers who need consistent, high-volume output with minimal downtime.
The YC-300 handles can diameters from 50 mm to 180 mm - the widest range in the YC series. This covers slim beverage cans (52 mm) through standard food cans (99 mm) to large industrial and aerosol containers (180 mm), all on one configurable platform.
The YC-300 full-automatic can and lid production system is priced at USD 450,000-600,000 depending on automation level, optional modules (laser welding, AI vision system, 8-color printing), and included accessories. Final price confirmed after specification review. Typical lead time is 30-90 days.
The YC-300 integrates 100% pneumatic leak testing and optional AI vision inspection for seam integrity, coating uniformity, and print quality. First-pass yield reaches 98.5% standard, rising to 99.2% with the optional vision system. Full FAT/SAT documentation and material certificates are included.
Yes. YohoAI provides custom layout engineering for existing facilities. The YC-300 footprint is approximately 15,000 x 2,500 x 2,200 mm and supports SCADA integration for factory automation systems. Our engineers handle on-site installation, calibration, and operator training within the 3-6 week installation window.
Pricing varies by configuration and accessories. Please send us your specific requirements including production capacity needs, tube/can/capsule format, and required certifications. We typically respond within 2 hours with CIF/CFR/FOB pricing.
Standard delivery ranges from 30-90 working days depending on the model and configuration. Pharmaceutical GMP configurations with validation documentation packages require additional 5-10 working days. Expedited manufacturing is available for urgent orders at a 15-25% premium.
All YohoAI machines carry CE certification and are designed to meet cGMP and ISO9001 standards. Additional certifications including FDA compliance and specific food-grade standards are available depending on the product line and configuration.
The YC-300 is the most complex line in the YC series, integrating tinplate decoiling, forming, necking, seam welding, internal coating, curing, and automated leak testing into a single continuous line with a footprint of approximately 15,000 x 2,500 x 2,200 mm. Site planning must include a reinforced concrete foundation rated for dynamic loads, dedicated power circuit (10-15 kW), compressed air header at 0.5-0.7 MPa, and an exhaust system for the curing oven. YohoAI provides custom layout engineering drawings and a site readiness checklist before shipment. Full SCADA integration with the host factory MES is supported and should be specified at order to ensure correct PLC communication protocol configuration during commissioning.
At up to 300 cans per minute, the YC-300 demands rigorous daily monitoring across all integrated process stages. The progressive necking and double seaming stations operate under high cycle counts, and any drift in hook compression force will directly cause leaks in finished cans. Daily startup must include a 15-minute thermal stabilization cycle for the curing oven to ensure the 180-200 degC coating cure profile is maintained from the first can. The VFD-controlled servo drives reduce energy consumption by up to 25% compared to conventional lines, but they require quarterly insulation resistance testing to prevent unplanned downtime.
Preventive maintenance for the YC-300 follows a structured schedule aligned with the SCADA system's OEE tracking data. Daily shift checks cover seam quality sampling, air pressure verification, and curing oven temperature log review. Weekly tasks include lubricating all servo motor bearings, checking necking die wear with go/no-go gauges, and verifying PLC network communication with each sub-station. Monthly maintenance focuses on welding head consumables, spray nozzle replacement, and vision system recalibration. Quarterly SCADA diagnostics confirm data logging integrity and enable predictive maintenance alerts before failures occur.
