Name: Hard Capsule Filling Machine
Brand: YohoAI

Product Overview

High-speed automatic capsule filling for industrial-scale production

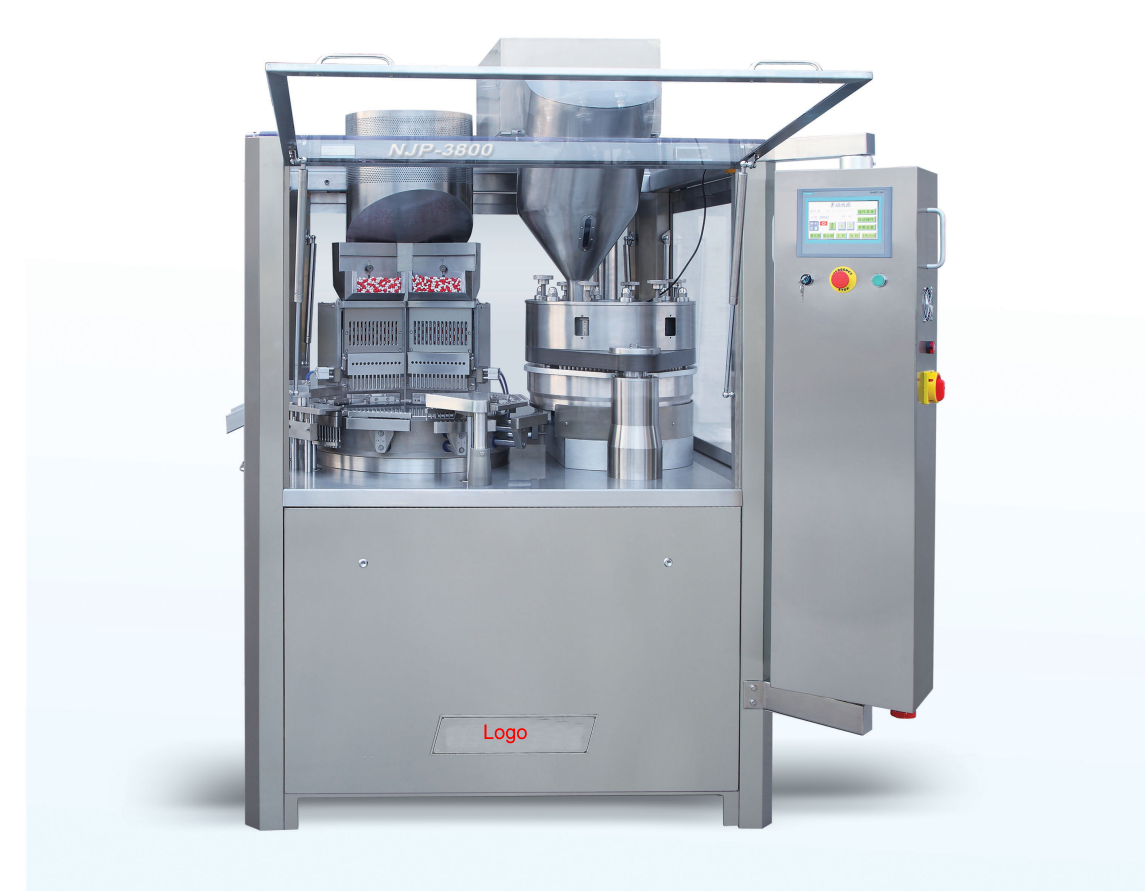

The NJP-3800 Fully Automatic Hard Capsule Filling Machine is designed for high-volume production of filled hard capsules in pharmaceutical, nutraceutical, and herbal medicine manufacturing. With a maximum output of 228,000 capsules per hour, it delivers industry-leading speed without compromising dosing accuracy.

Built with a servo-driven dosing system and CNC-machined dosing discs, the machine achieves filling accuracy of ±2% for powder formulations. The modular tamping mechanism ensures uniform capsule weight, while the quick-change mold system allows format changes between capsule sizes (000–0) in under 30 minutes.

The machine features product standardization and serialized production: the universal interchangeability of manufacturing parts reaches more than 98%. Each spare part has a fixed code, and the positioning-hole design of replacement mold parts ensures high repeated positioning accuracy. Mold replacement is fast, operation is simple, and cleaning is convenient.

How It Works

8-step automatic capsule filling process

Empty Capsule Feeding

Empty hard capsules (gelatin or HPMC) are loaded into the capsule hopper. A vacuum-driven separator splits each capsule into body and cap halves, orienting them into the dosing stations of the rotating turret.

Capsule Separation

The capsule bodies are seated in the lower bores while the caps are held in the upper bores. A vacuum system ensures reliable separation with a success rate exceeding 99.9% for standard capsules.

Power Dosing – Tamping

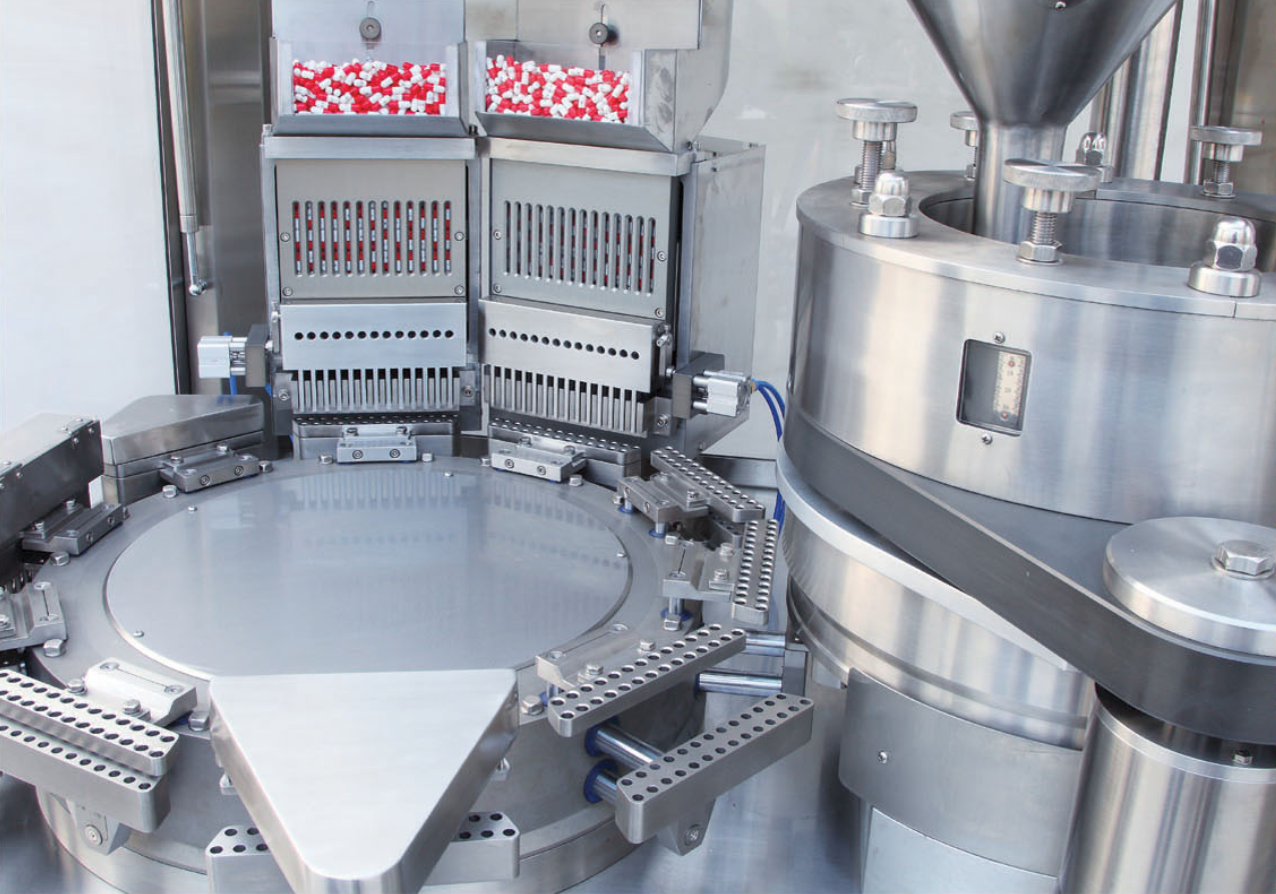

Powder from the feed hopper is drawn into the dosing disc cavities. A series of tamping pins (5-stroke) progressively compress the powder into uniform plugs. The tamping force and depth are servo-adjustable for each formulation.

Plug Ejection into Capsule Body

The tamped powder plugs are ejected from the dosing disc and deposited into the capsule bodies. The ejection pins ensure clean transfer without powder loss or cross-contamination.

Excess Powder Removal

Any residual powder around the capsule body rim is removed by a vacuum suction system. This ensures clean sealing surfaces and prevents powder leakage from finished capsules.

Capsule Closing

The upper bores carrying the caps are aligned with the lower bores containing filled bodies. Closing pins push the caps onto the bodies, applying controlled pressure to lock the capsules without damaging the shell.

Ejection & Collection

Finished capsules are ejected from the turret bores and directed into the output chute. An automatic counting and collection system sorts the capsules into containers for downstream processing.

In-Line Quality Check

An optional in-line weight checker or visual inspection system monitors capsule weight, integrity, and appearance in real time. Reject capsules are automatically diverted to a separate bin for review.

Technical Specifications

NJP-3800 fully automatic capsule filling machine

Parameter	Specification	Notes
Model	NJP-3800	3800 capsules/cycle
Max Production Capacity	228,000 capsules/hour	Depends on powder characteristics
Capsule Size Range	000, 00, 0, 1, 2, 3, 4, 5	Quick-change mold system
Filling Accuracy	±2% (powder)	With calibrated dosing disc
Max Filling Weight	Up to 1,200 mg (size 0)	Varies by powder density
Dosing Method	Tamping pin (5-stroke)	Servo-driven adjustable force
Parts Interchangeability	≥98%	Standardized serialized production
Mold Changeover Time	< 30 minutes	Positioning-hole design
Capsule Separation Rate	≥99.9%	Vacuum separation system
Power Supply	380V/50Hz, 3-phase	220V/60Hz optional
Installed Power	7.5 kW	Includes vacuum pump
Compressed Air	0.5–0.7 MPa, 200 L/min	Oil-free recommended
Vacuum Pump	Built-in, 0.08 MPa	Water-sealed type
Machine Dimensions	1,100 × 1,200 × 1,900 mm	Excluding hopper
Machine Weight	1,800 kg	Crated: ~2,200 kg
Control System	PLC + 10-inch HMI touch screen	Recipe management, alarm log
Contact Parts Material	316L stainless steel	cGMP compliant
Noise Level	≤72 dB(A)	At full speed operation

* Specifications subject to final confirmation. Custom configurations available for specific formulations, pellet filling, and combination dosing. Contact our engineering team for tailored solutions.

Key Features

Engineered for high-speed precision and easy maintenance

High-Speed Output

Up to 228,000 capsules/hour with the 3800-station turret. Servo-driven system maintains speed without accuracy loss.

Precision Dosing

5-stroke tamping system with servo-adjustable force achieves ±2% filling accuracy. CNC-machined dosing discs ensure plug uniformity.

Quick Mold Change

98%+ parts interchangeability with fixed coding system. Positioning-hole design allows mold swap in under 30 minutes – No special tools required.

cGMP Compliant

316L stainless steel contact parts, polished surfaces, enclosed dosing area, and CIP-compatible design meeting pharmaceutical standards.

Smart Control

PLC + 10-inch HMI with recipe management, real-time production monitoring, alarm logging, and remote diagnostic capability.

Versatile Filling

Handles powder, pellets, micro-tablets, and combination fills. Optional dosing disc for granules and mixed formulations.

Easy Maintenance

Modular turret assembly with quick-release pins. Tool-free cleaning access. Serialized spare parts with fixed codes for fast ordering.

HPMC Compatible

Vacuum separation system handles both gelatin and HPMC (vegetarian) capsules reliably, with ≥9.9% separation rate.

Applications

Trusted across pharmaceutical and health industries worldwide

Pharmaceutical

Antibiotics, anti-inflammatory drugs, cardiovascular medications, and other prescription medicines in hard capsule format.

Nutraceuticals

Vitamins, minerals, probiotics, herbal extracts, and dietary supplements requiring precise dosing and high throughput.

Traditional & Herbal Medicine

TCM powder formulations, herbal extracts, and compound prescriptions in capsule form for easy consumption.

Contract Manufacturing

CDMO/CMO facilities requiring flexible, high-speed filling for multi-product, multi-size production runs.

Veterinary Medicine

Animal health products in larger capsule sizes (000–0) including antibiotics, supplements, and parasiticides.

Clinical Trial Supply

Small to medium batches for Phase I–III clinical trials with strict weight uniformity and documentation requirements.

Why Choose YohoAI?

Your trusted partner in hard capsule filling technology

Free Installation & Debugging

We provide free on-site installation, debugging, and commissioning for all equipment. Sufficient spare parts, tools, and accessories are included in every shipment.

One-Year Warranty

All products include a 12-month warranty. During the warranty period, technical services, equipment repairs, and parts replacement are covered under our three guarantees policy.

Lifelong Service

Our commitment doesn't end at delivery. We offer lifelong technical support, spare parts supply, and software updates for all customers.

Free Technical Training

We provide free process trials, operator training, and maintenance training at our factory. Our experienced engineers also support process layout design for your facility.

Frequently Asked Questions

Q: What capsule sizes can the NJP-3800 handle?

A: The machine supports all standard capsule sizes from 000 (largest) to 5 (smallest). Changing between sizes requires swapping the mold set, which takes under 30 minutes thanks to the positioning-hole design.

Q: Can it fill both gelatin and HPMC capsules?

A: Yes. The vacuum separation system is designed to handle both gelatin and HPMC (vegetarian) capsules with a separation success rate of ≥9.9%. No hardware modification is needed when switching capsule types.

Q: What types of fill can the machine handle?

A: The NJP-3800 can fill powder, granules, pellets, micro-tablets, and combination fills (e.g., powder + pellet). Optional dosing disc configurations are available for specialized formulations.

Q: How easy is it to change molds?

A: Very easy. The machine uses a positioning-hole design with 98%+ parts interchangeability. Each spare part has a fixed code for identification. Mold changeover takes under 30 minutes with no special tools required.

Q: Do you provide installation and operator training?

A: Yes, free on-site installation, commissioning, and operator training are included. We also offer free process trials at our factory before equipment delivery.
